Printing a Disc Label from a Computer

This section describes how to print photos on a printable disc with Easy-PhotoPrint Editor.

Important

  • Do not mount the multi-purpose tray until the message prompting you to load the printable disc appears. Doing so can damage the printer.

  1. Start Easy-PhotoPrint Editor.

    For Windows:

    The procedure below is for a computer running the Windows 10 operating system.

    From the Start menu, select (All apps >) Canon Utilities > Easy-PhotoPrint Editor.

    For macOS:

    From the Go menu in Finder, select Application and double-click the Canon Utilities folder, the Easy-PhotoPrint Editor folder, and then the Easy-PhotoPrint Editor icon.

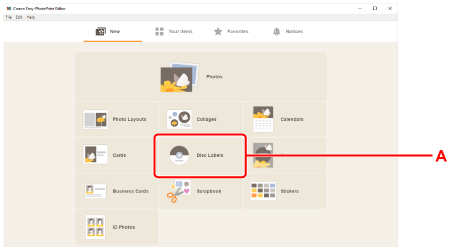

  2. Click Disc Labels icon (A).

  3. Select template (B).

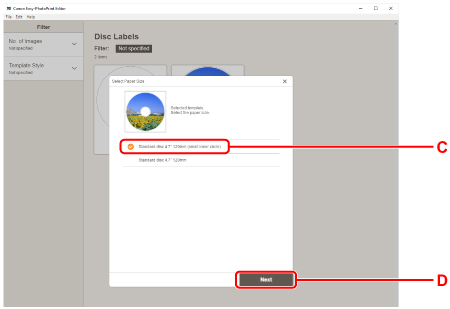

  4. Select type of printable disc (C) and select Next (D).

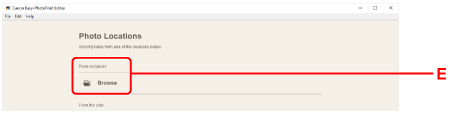

  5. Click Browse (E) in From computer: and select folder with photos you want to print.

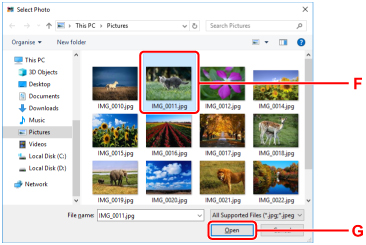

  6. Click photos (F) you want to print and select Open (G).

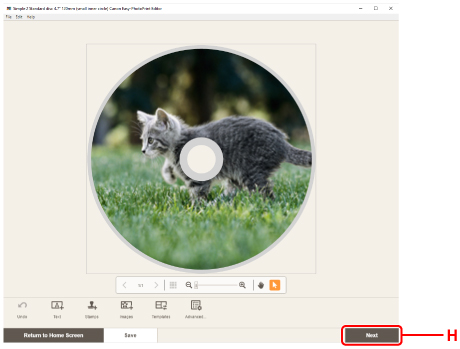

  7. Edit disc label and select Next (H).

    You can change the background or add texts.

  8. Open operation panel (I) until horizontal.

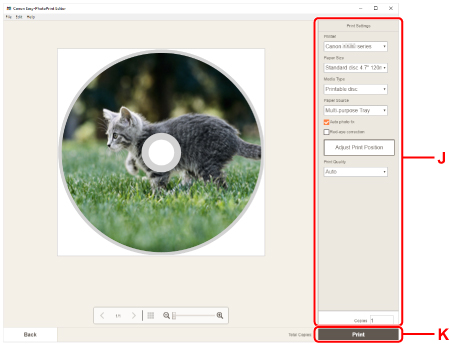

  9. Specify number of copies and other options under Print Settings (J).

    For Windows:

    Specify the number of copies, your printer name, and other options.

    For macOS:

    Specify the number of copies and other options.

  10. Start printing.

    For Windows:

    Click Print (K).

    For macOS:

    Click Next. When the Print dialog appears, specify your model name and other options, and then click Print.

  11. When message prompting you to load printable disc appears on printer's touch screen, remove cassette from printer and then detach multi-purpose tray from back of cassette.

    Insert the removed cassette back into the printer.

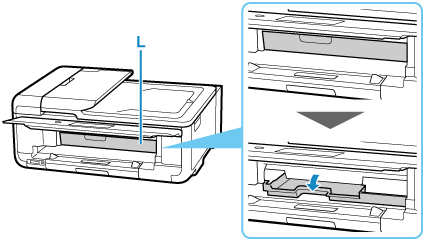

  12. Open multi-purpose tray guide (L) and completely press it down.

  13. Place printable disc on multi-purpose tray.

    1. WITH PRINT SIDE FACING UP, place printable disc, and press it against lock (M) at bottom.

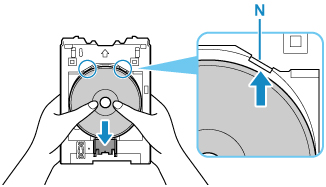

    2. While pressing down lock with printable disc, insert top of printable disc into slits (N).

  14. Place multi-purpose tray on multi-purpose tray guide.

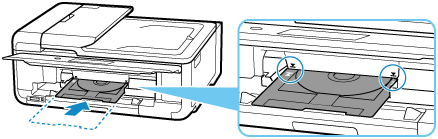

  15. Insert multi-purpose tray straight in in horizontal direction until arrow () on multi-purpose tray guide is approximately aligned with arrow () on multi-purpose tray.

  16. Select OK on printer's touch screen.

    The multi-purpose tray is drawn into the printer and printing will start.

  17. After printing is complete, pull multi-purpose tray from printer to remove it.

  18. While pressing down lock (M), take out printable disc from slits (N) on multi-purpose tray, and remove it.
